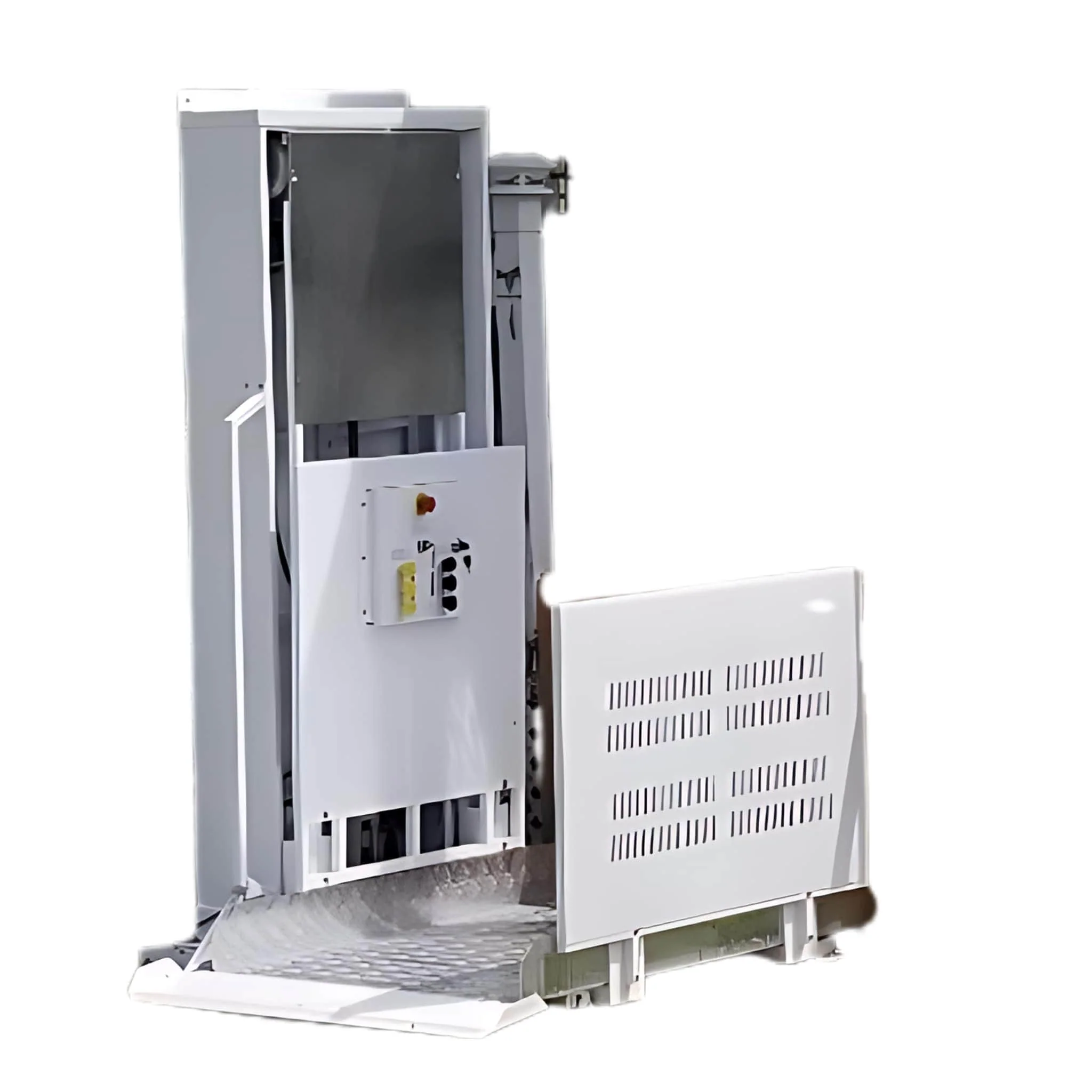

P Lift Series Wheelchair Lift
Porch Lift Series Residential Wheelchair Lift
Americas Favorite Porch Lift

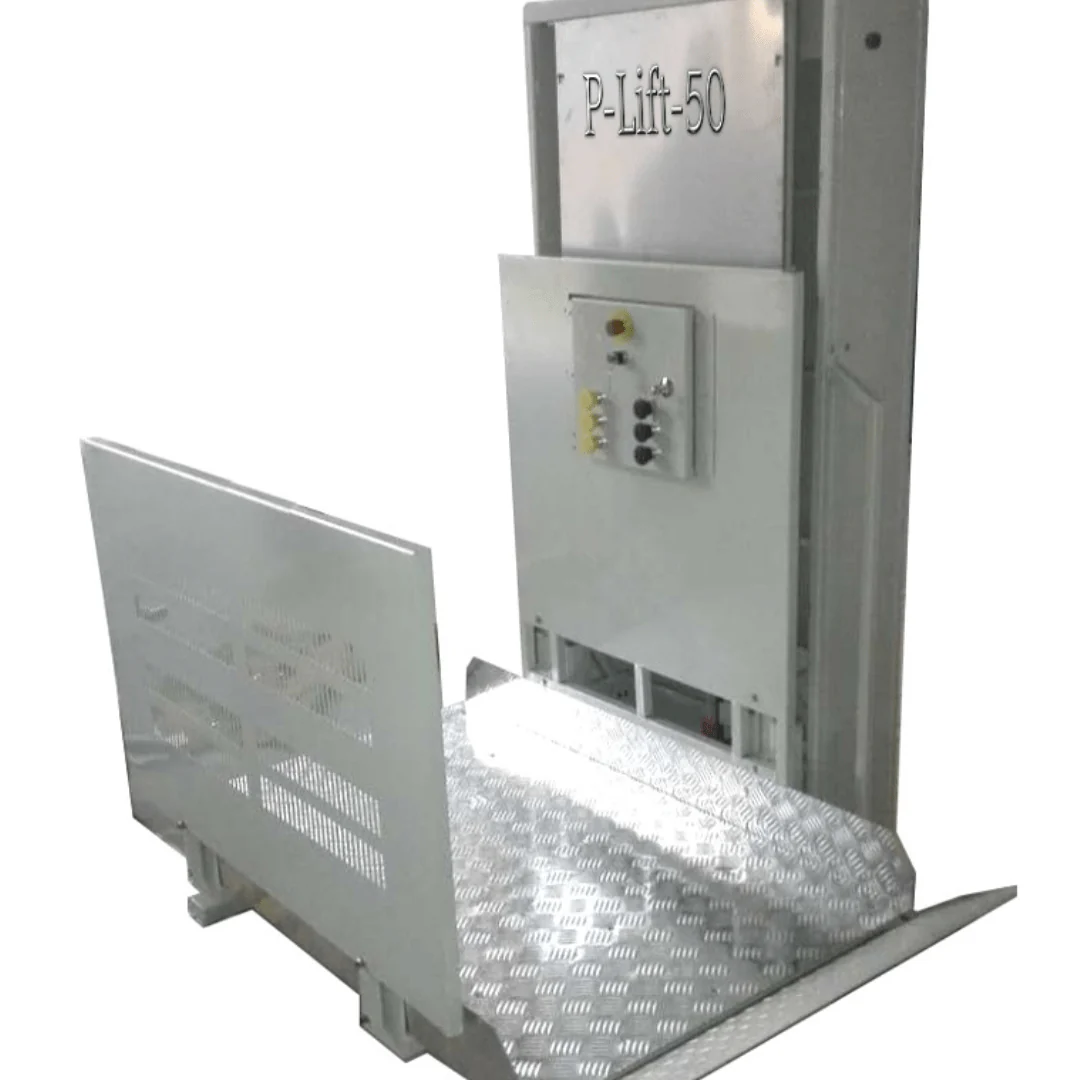

The P-Lift Series Residential Wheelchair Lift now Americas Favorite Wheelchair Lift with a 850 pound capacity and the ability to lift up to 50, 60 or 72 inches. The P-Lift Series wheelchair will give you back your freedom providing access to the world as well as to areas you were never able to gain access to before.
The P-Lift-Series is one of the smoothest products available when installed and adjusted to factory specifications.
By utilizing an screw design the P-Lift-Series wheelchair lift is inherently safe and you are not exposed to the safety issues that chain driven lift are exposed to.

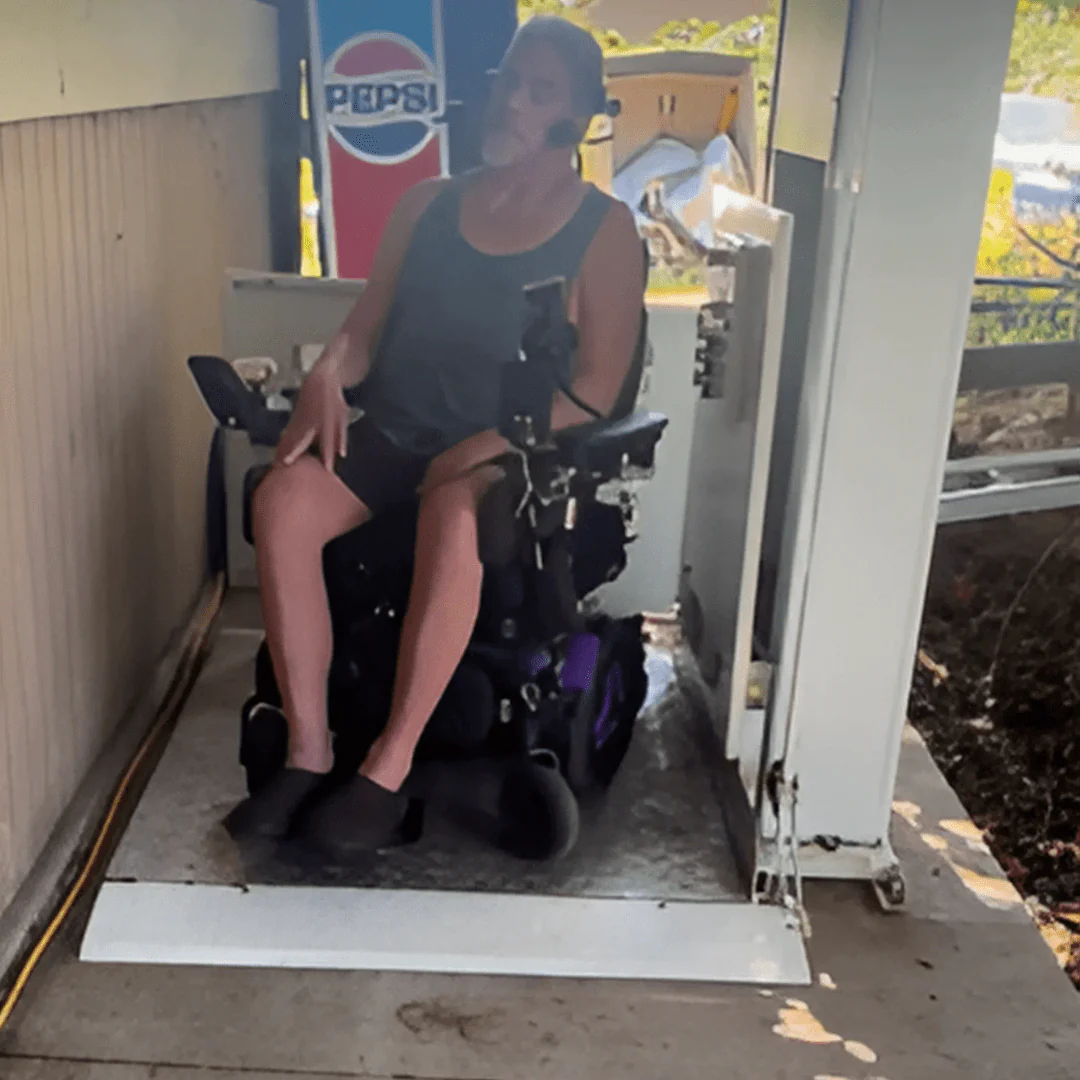

Residential porch lifts are a simple, affordable solution for creating easy home access. Even a few steps can be a large barrier to someone with limited mobility. A P-Lift-Series Residential Wheelchair Lift is designed for indoor or outdoor use to provide a safer home environment and a better quality of life.

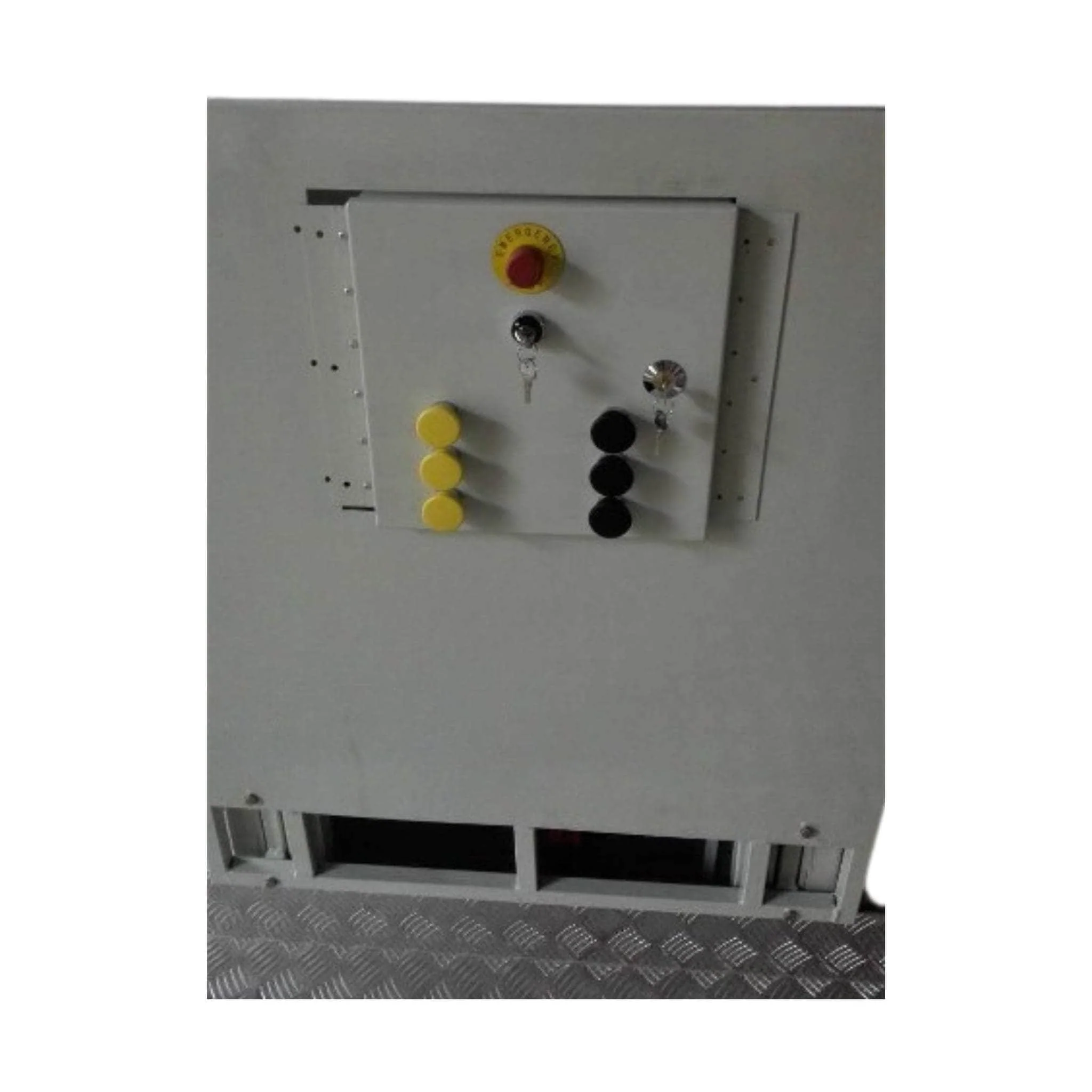

The P-Lift-Series residential wheelchair lift. is equipped with a keyed ignition lockout so individuals & children can not use the lift when you do not want them using it.
The P-Lift-Series also has a emergency stop button and a second keyed locking panel for access to controls.
The P-Lift-Series is the only residential wheelchair lift with three target buttons for up as well as three target buttons for down, this gives a disabled user a far greater range and ability to operate the lift themselves without the need of a aid or 2nd individual to activate the lift.
The 90 Degree platform option (Shown To The Left) Allows users to turn left or right to exit once they enter the lift. The standard orientation is a straight through. Meaning you enter from one side and go straight through exiting the opposite side once lifted.
The P-Lift-72 option allows users to travel a full 72" or 6' (six feet)
The 72 option is also reversible allowing the tower to be placed on either side and as with the 50 or 60 model the 72 has a upper limit switch that once adjusted will stop the lift perfectly where you need it automatically every time.

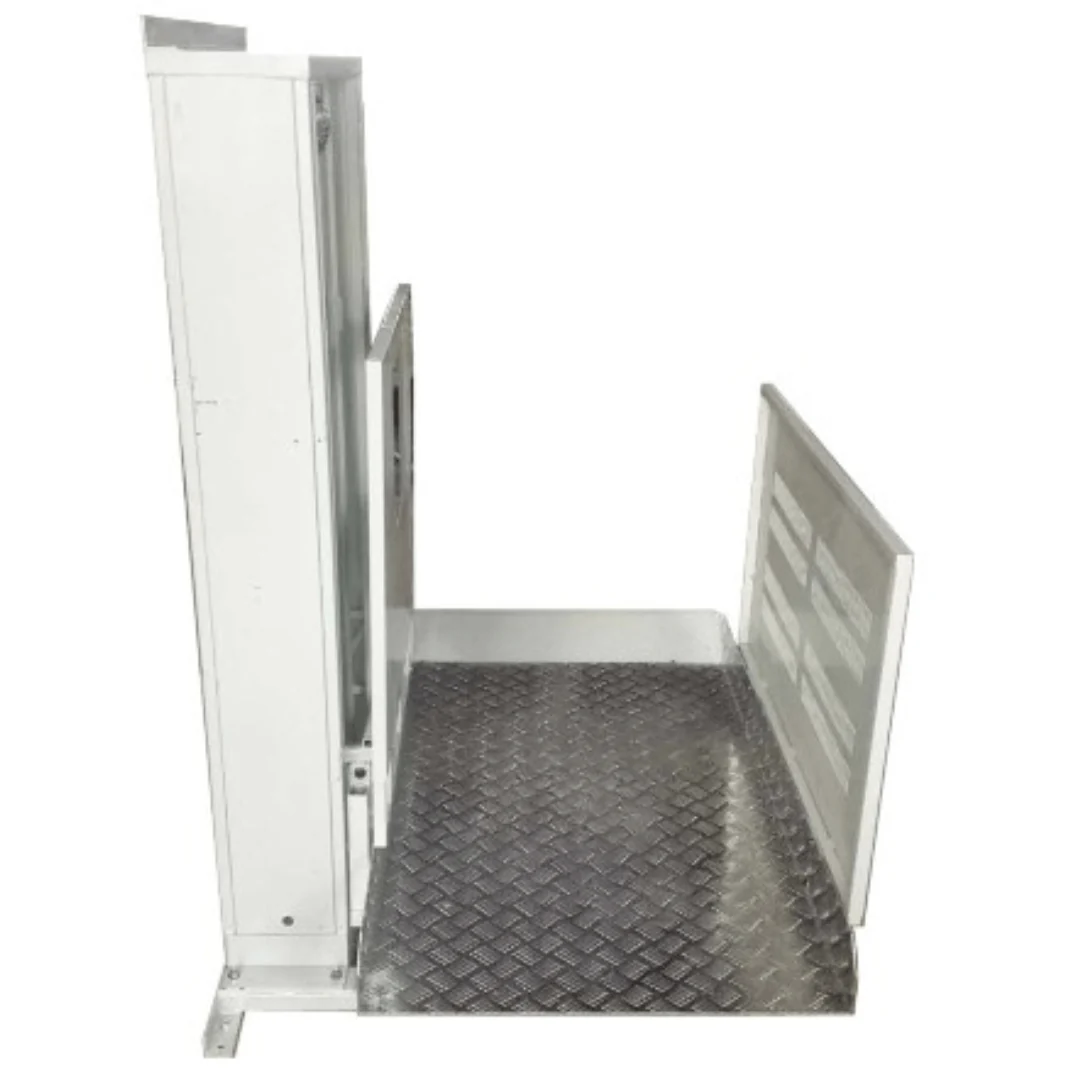

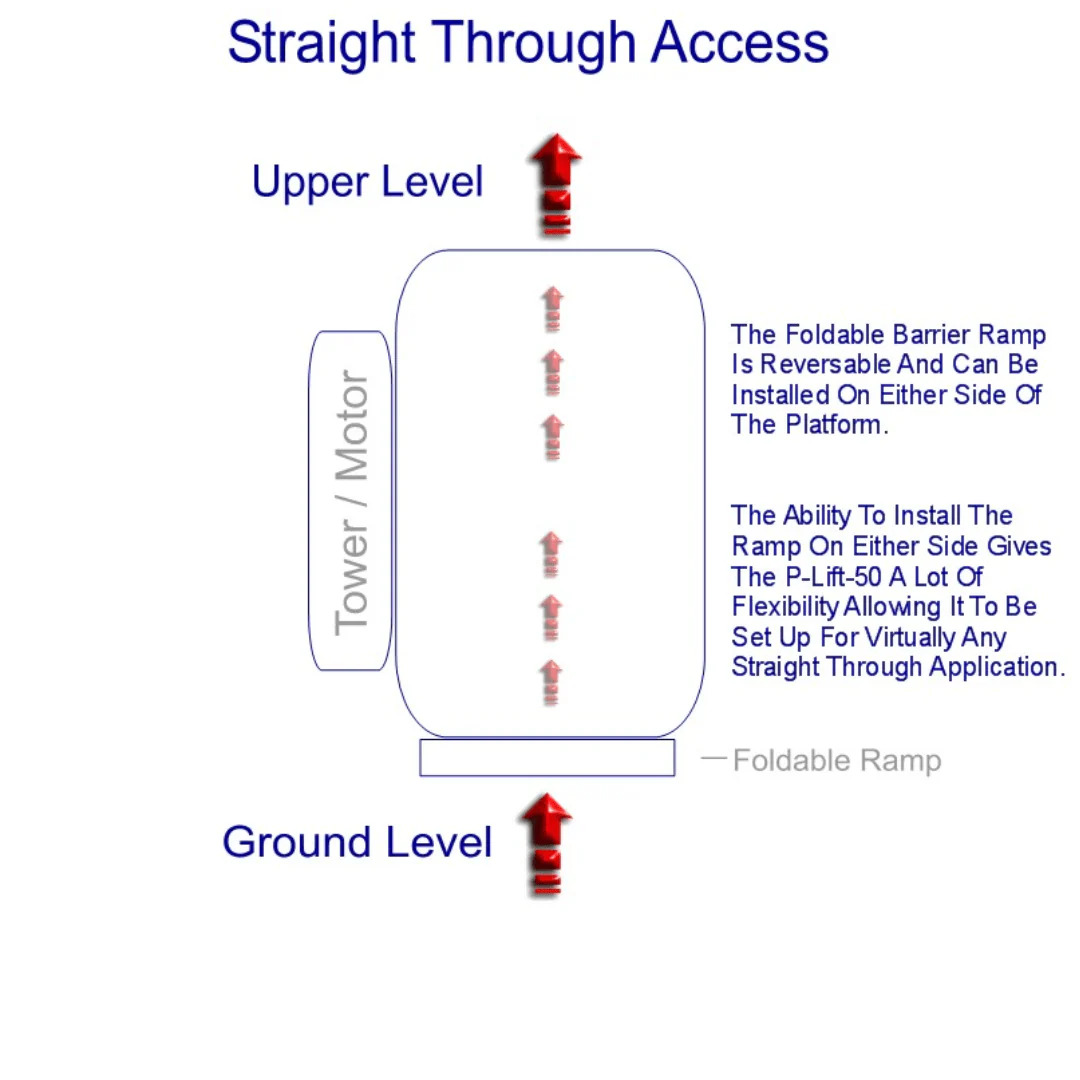

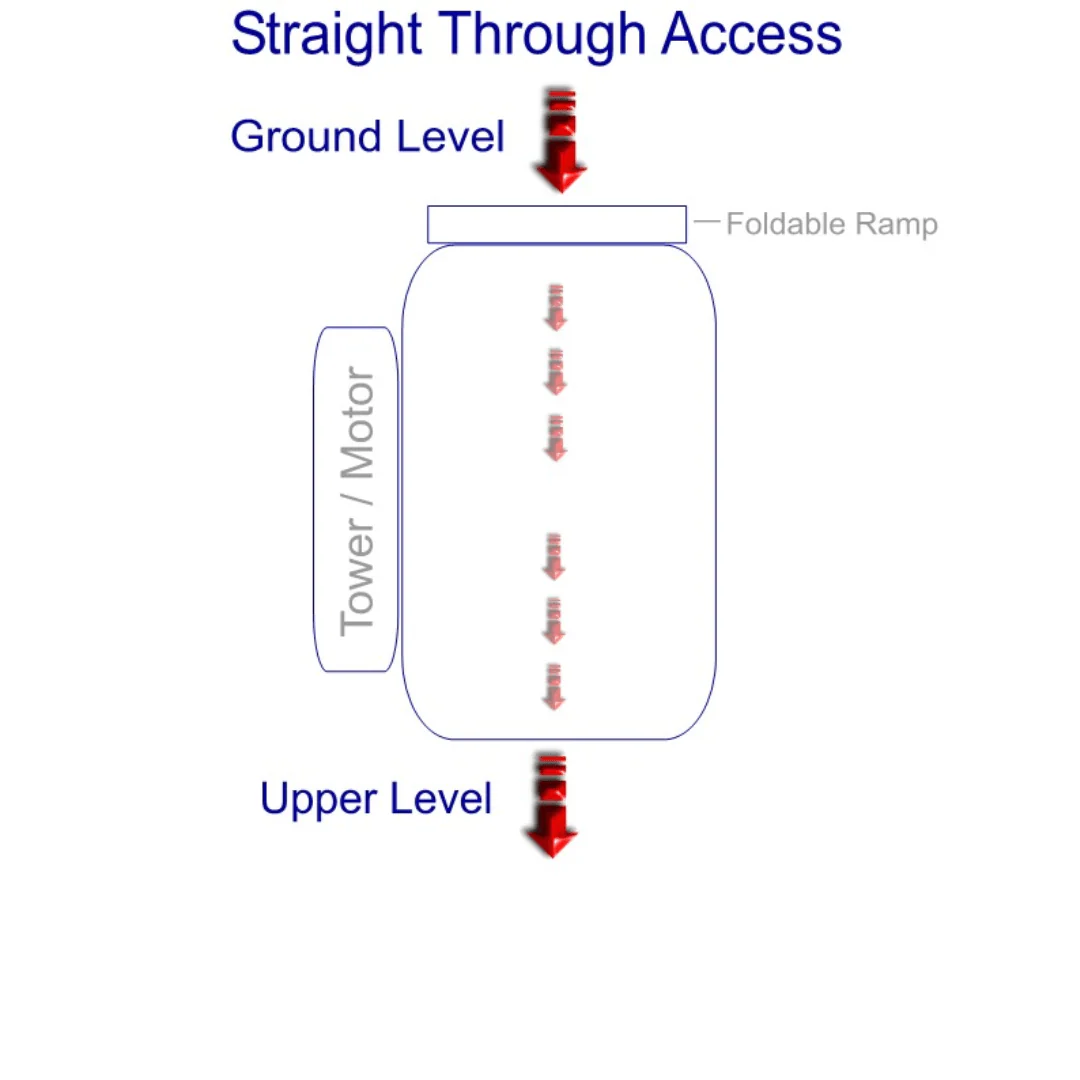

The Straight Through P-Lift-Series Can Be Configured Any Way A User Would Like. Meaning The Tower Can Be Placed On Either Side And The Same Goes For The Fully Automatic Folding Ramp & Barrier.

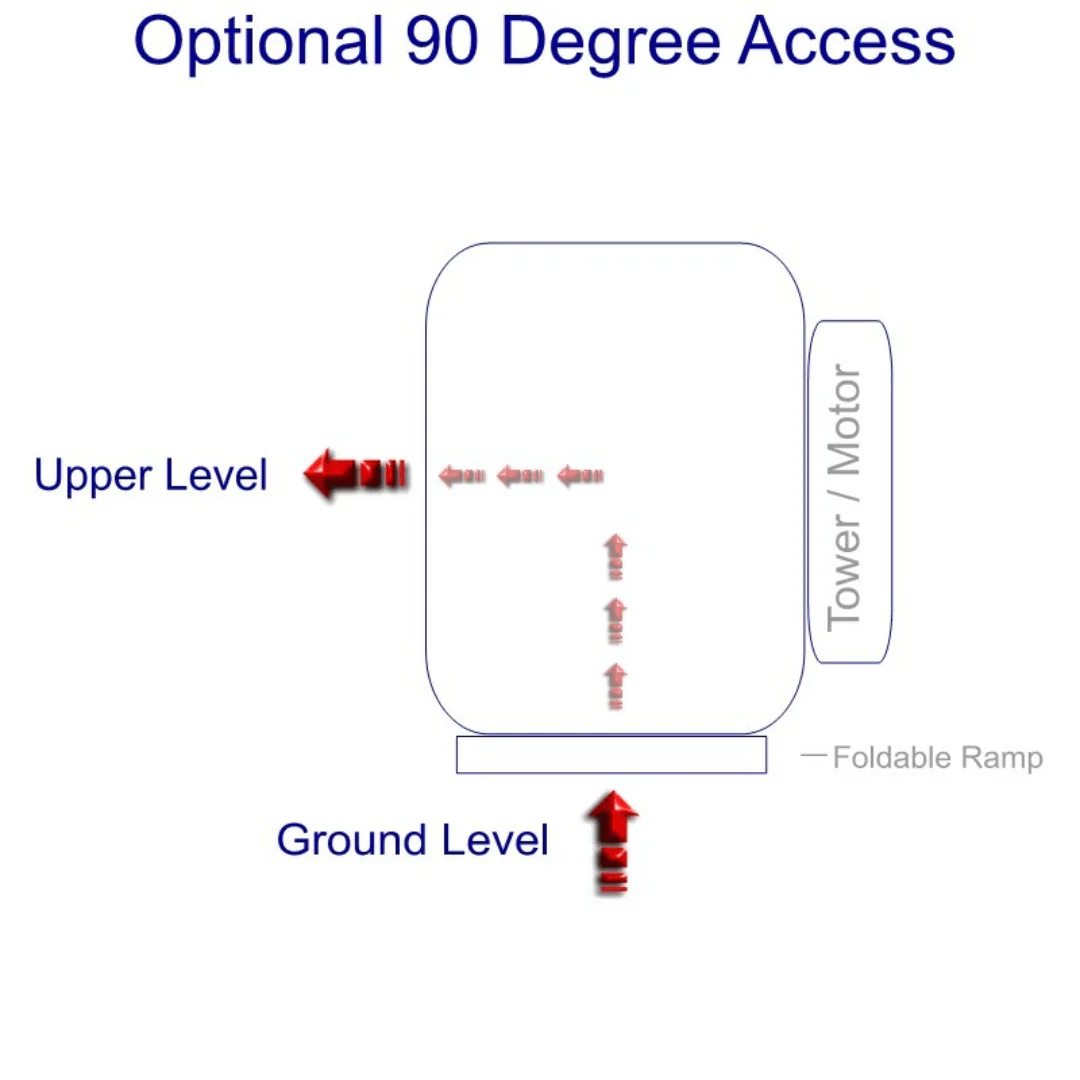

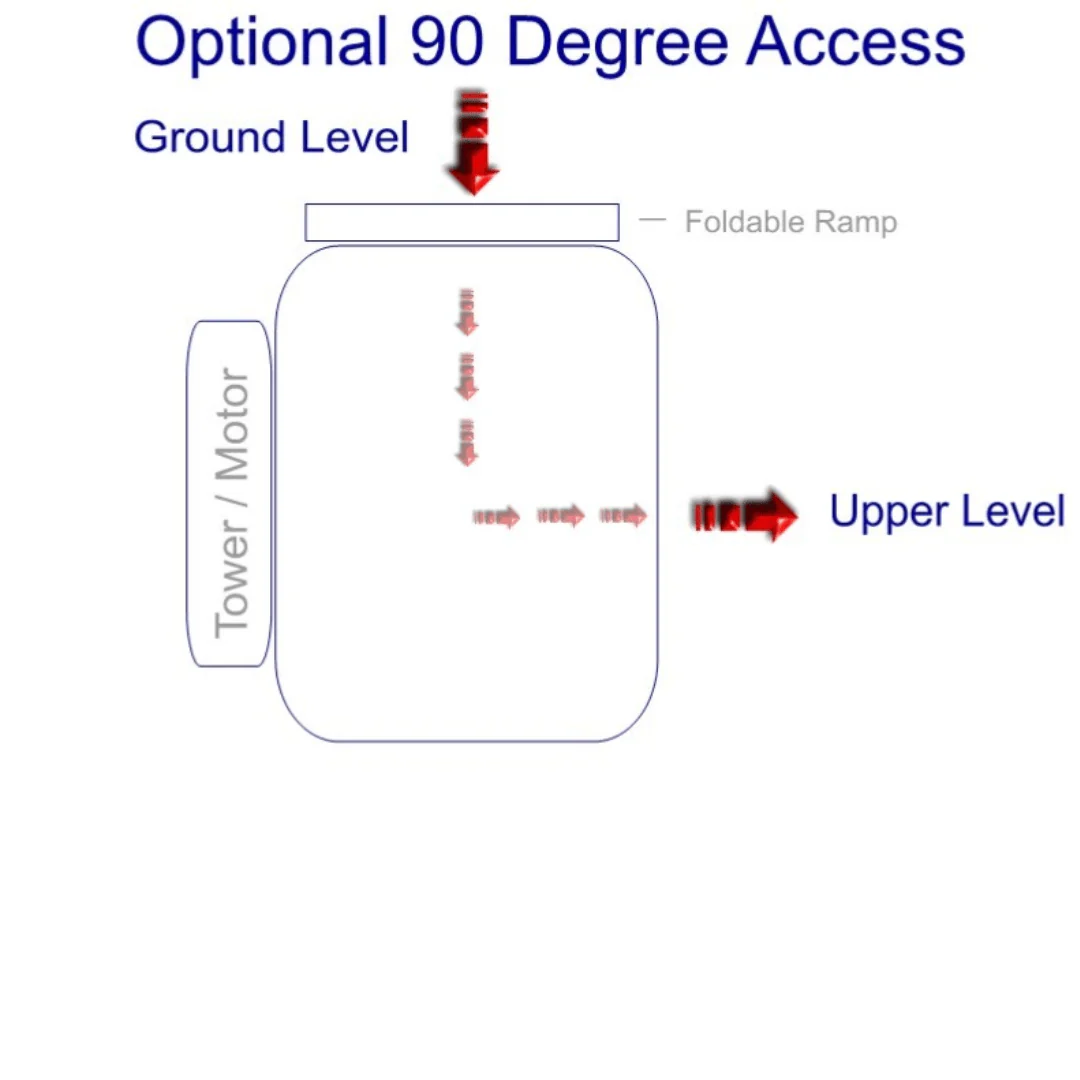

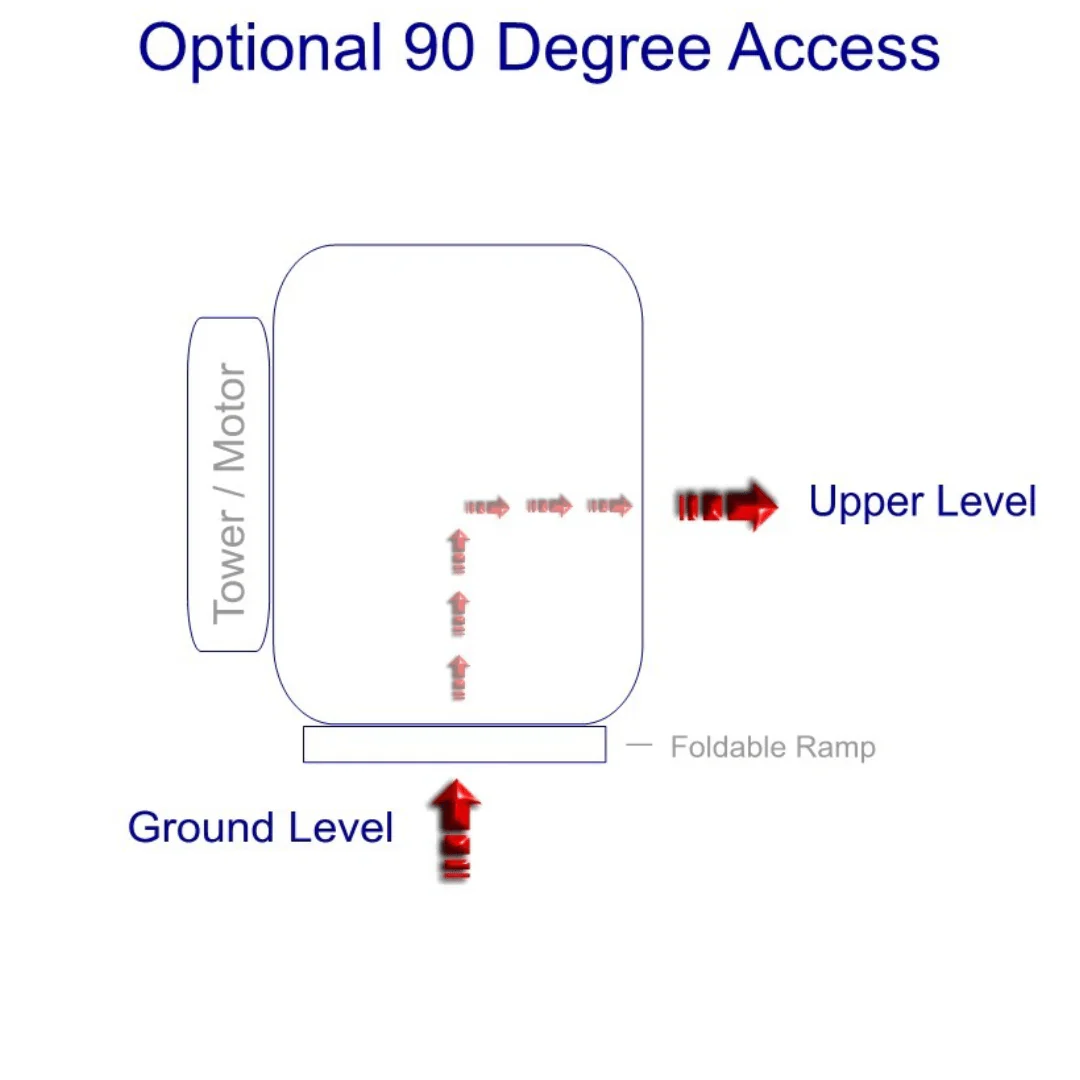

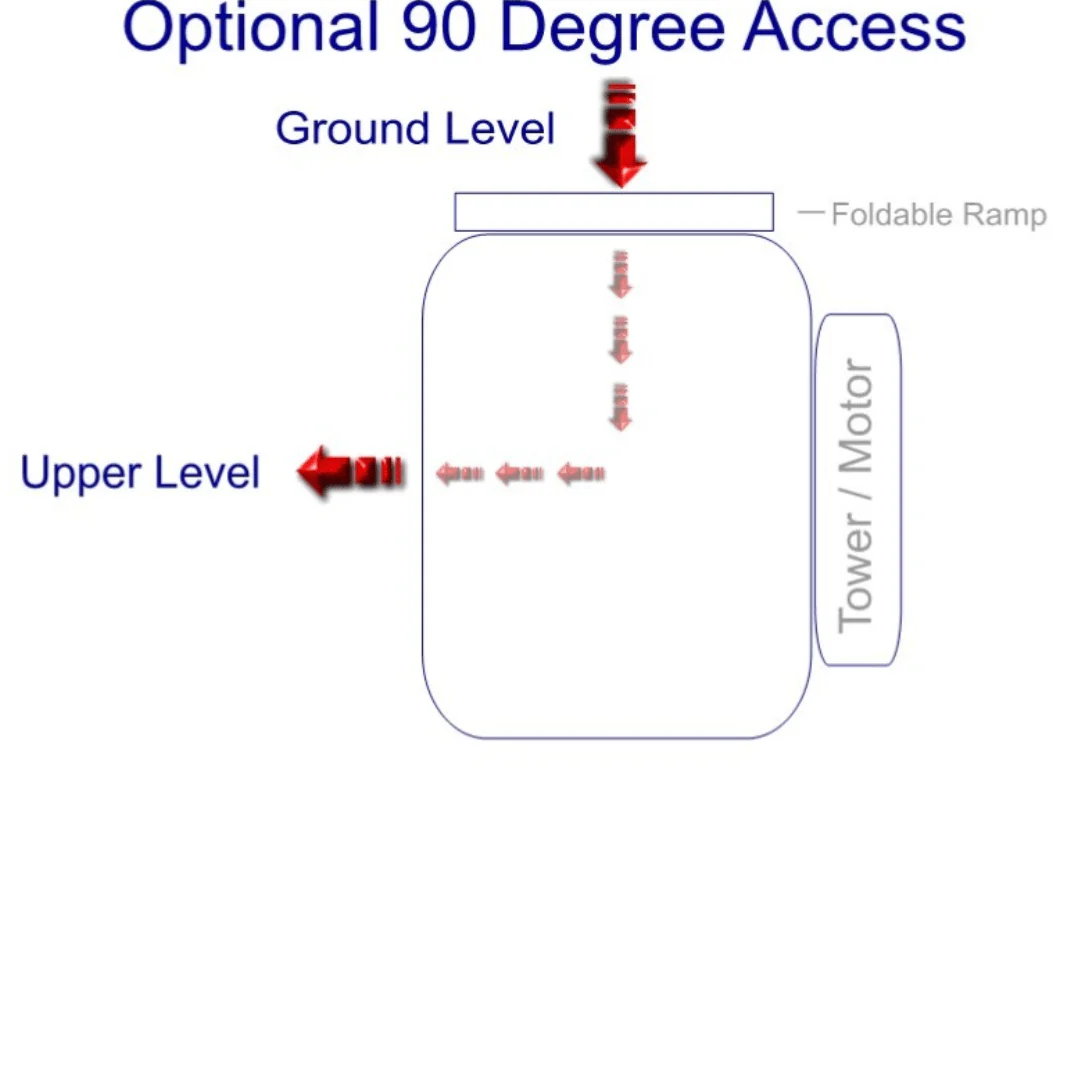

The 90 Degree Access Option Provides A Wider Platform. This Allows A Wheelchair To Turn And Then Exit The Lift. Once Again The Tower Is Reversible As Is The Folding Barrier Ramp Giving The 90 Degree All The Flexibility Of The Straight Through Version.
Note: The 90 Degree Access Option is only available when ordering the P-Lift-Series & not available when ordering the P-Lift-72.
The Flexibility For The P-Lift-Series To Accommodate Any Configuration Or Orientation Required Is The Envy Of Most All Other Manufactures Or Competitors.

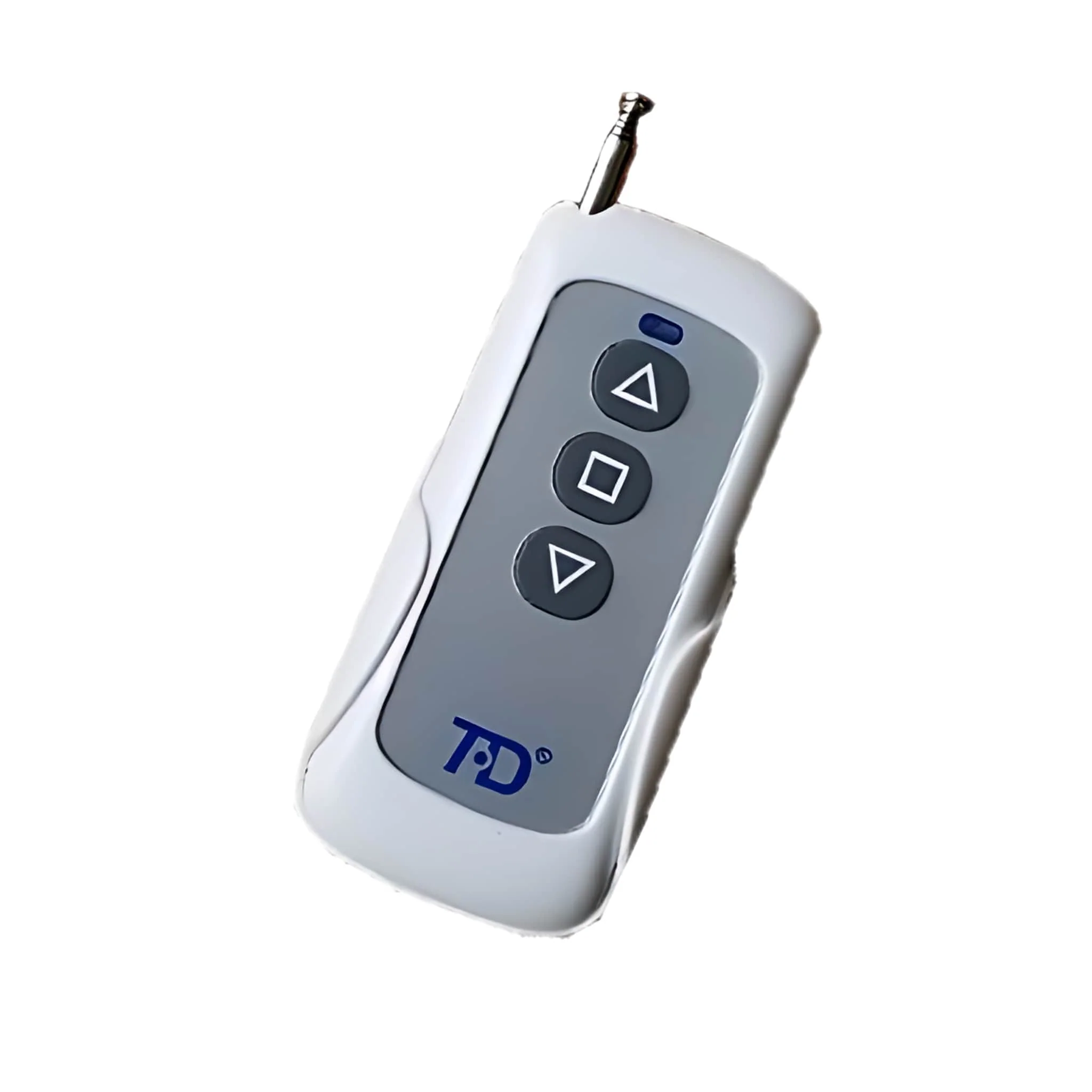

When You Combine The Flexibility Of Orientation, With Any Configuration, Extreme Reliability, Diamond Plate Deck, Weight Capacity Of 850 Lbs & Wireless Remote Then It Is Easy To See The P-Lift-Series Is A Superior Product.
P Lift 50 Specifications
Specifications
Constant Pressure Operation – for safety
Up to 850lb weight capacity
8 ft/min travel speed
Total Travel: 50 inch
Synchronous Geared Belt Drive with Brake
Screw Design
Durable Powder Coated Steel Construction
1 x 110 VAC Single Phase, 15A power required

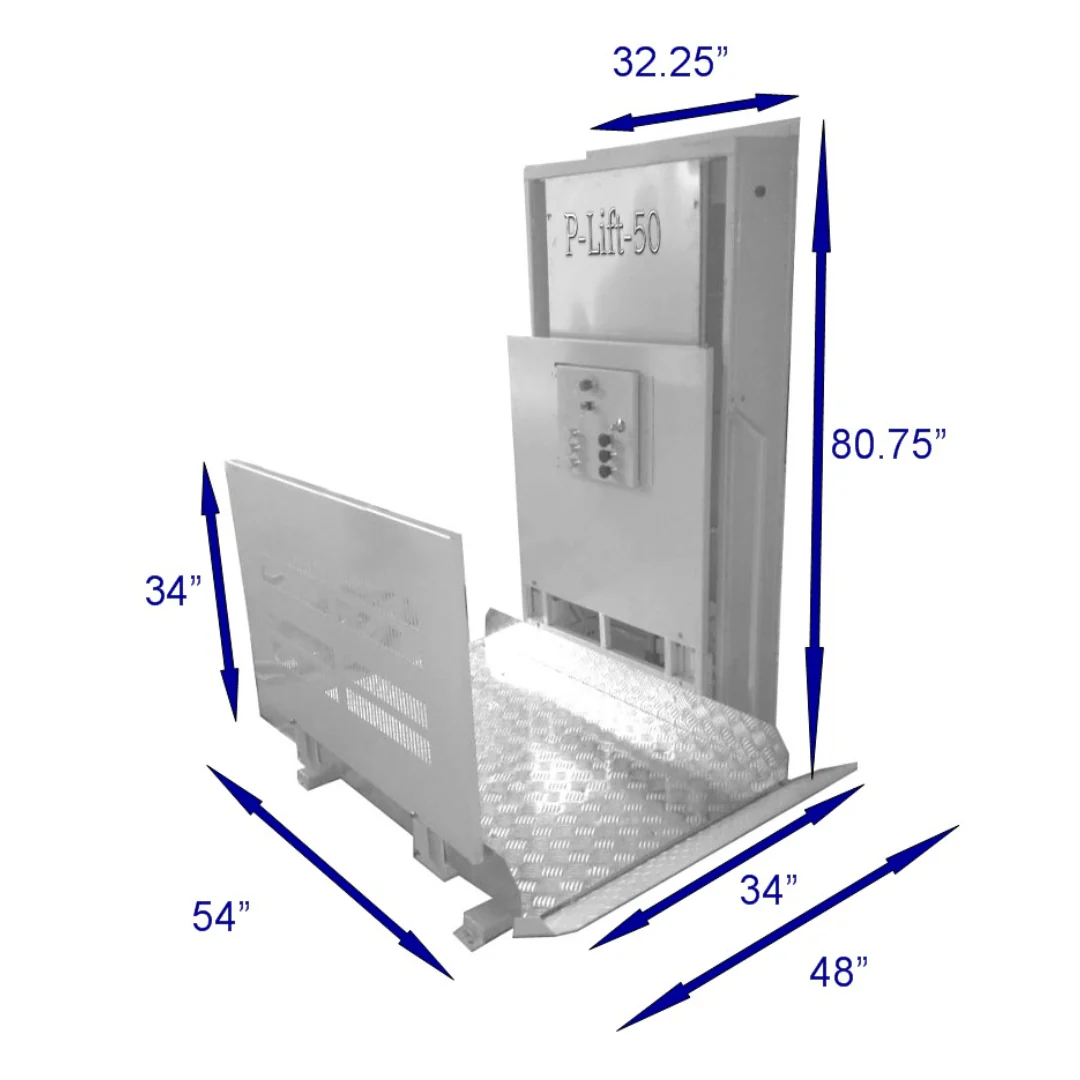

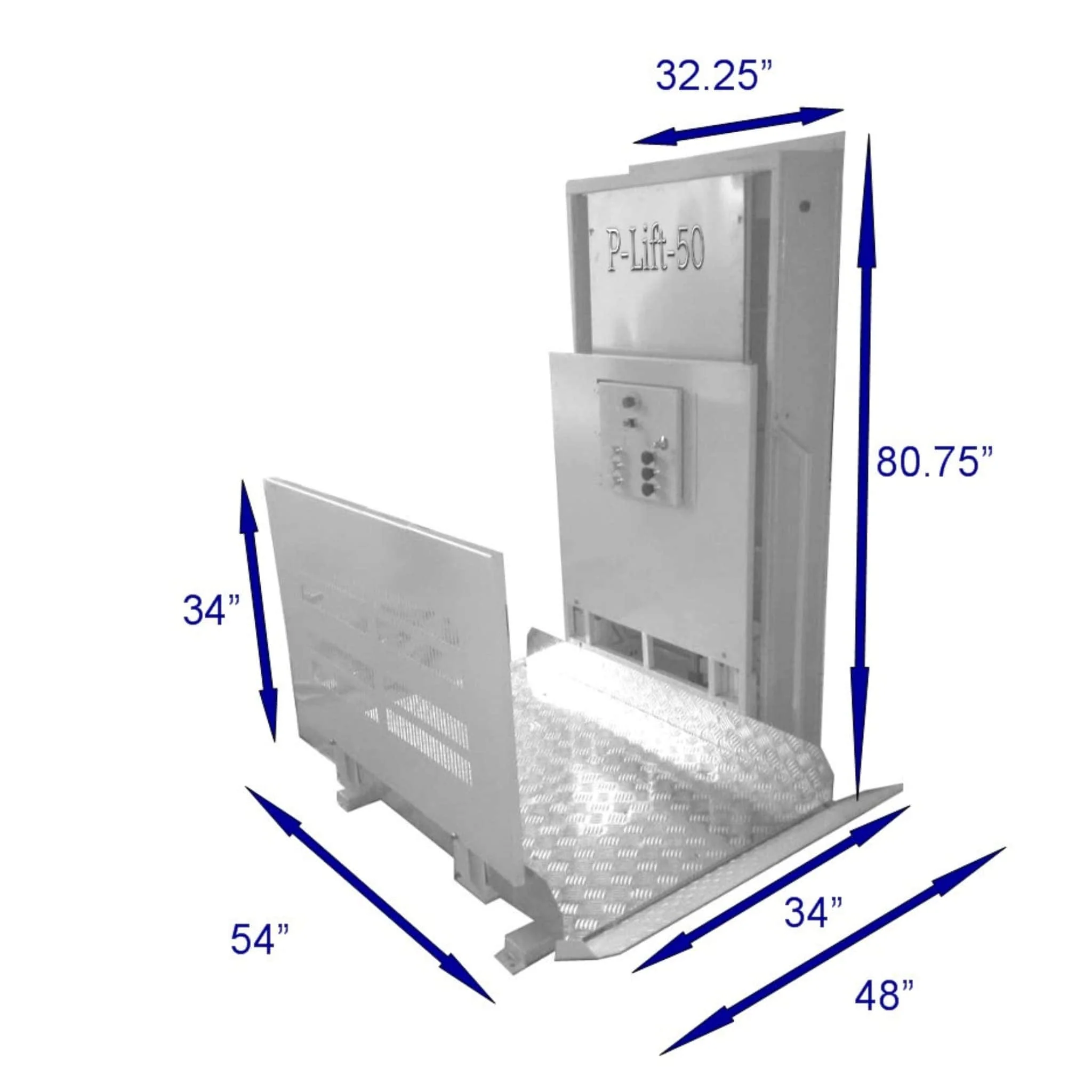

Platform Size: 34in (Wide) x 54in (Long)
........Keyed Lock Out
Emergency Stop Button
Solid Diamond Plate Platform
Solid Hand Wall
Upper & Lower Limit Switch
Up & Down Button X 3 (for increased target area)
Reversible Platform & Automatic Ramp
The P-Lift-Series was designed and engineered for residential home use. It's easy to operate easy to install with the ability to reverse the tower an fold down ramp to either side and is virtually maintenance free.
Every safety detail has been carefully designed into the P-Lift-Series including a non-slip platform, constant pressure switches, a low platform for easy roll-on/roll-off, safety barrier and railing, and rolled edges.
The P-Lift-Series can easily lift and lower up to 850 pounds and will accommodate electric wheelchairs and scooters. Running on a Threaded Screw rather then a gear box and chain, the P-Lift-Series will provide a smooth and quiet up and down ride, requiring little maintenance. All mechanics are fully enclosed, yet easy to access through the rear or front of the housing unit. The P-Lift-Series completely weatherized and attractively finished in extremely resilient & durable Off White Color.
The P-Lift-Series Vertical Home Lift is the economical and practical answer to stair barriers.
- The Vertical Home Lift P-Lift-Series have a one year warranty on parts against defects
- Powered with a 110 volt 15 amp AC current, by a � HP motor
- The toggle control switches with a tamperproof key lock switch are on a low voltage system, for safe operation
- Power drive system is all weather(-30 - l20 degrees)
- Heavy duty worm drive gear box with heavy duty Worm Gear (No dangerous lifting chain)
- 36 inch high side guard rail
- Hand crank for manual operation
- Adjustable limit switches
- Automatic access ramp and roll stop
- Non slip platform
- Capacity - 850 pounds
- Standard lifting height 50 inches.

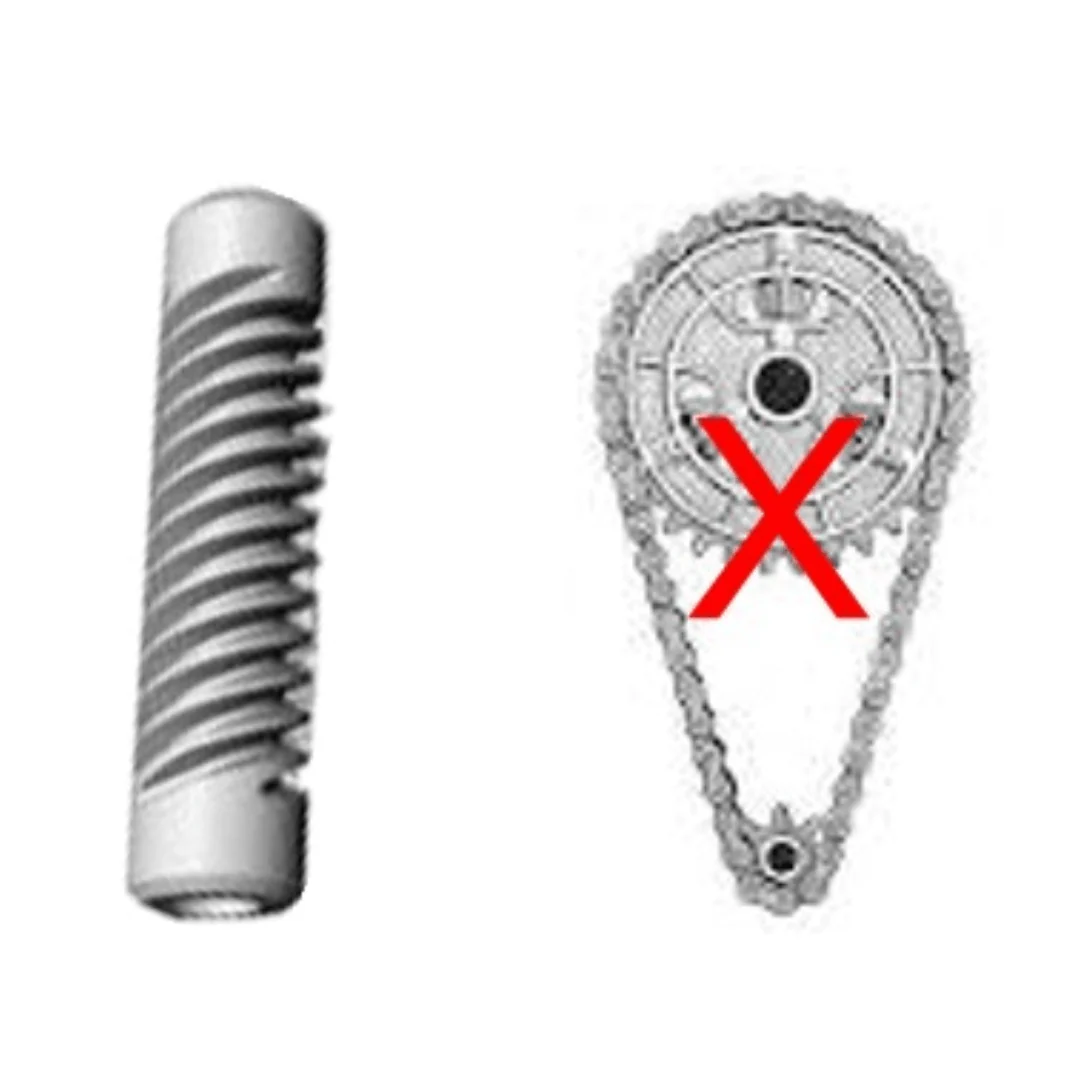

The Vertical Home Lift P-Lift-Series Uses a screw rather than a lifting chain. Lifting chains can be very unreliable where as a driving screw delivers a smooth reliable transfer from one level to the next.
The P-Lift-Series has a upper limit switch that allows it to be set to stop perfectly at the same height every time.
Also the P-Lift-Series has many safety redundancy systems well known in aviation or air craft. Then engineers responsible for the design of the P-Lift-Series have applied the same application to the P-Lift-Series for example the secondary upper limit arm that would stop the lift from over riding at the top in the event the 1st one failed.nce again the engineers applying a secondary or redundancy to the lower limit switch using a gate to make it 99.89% effective.
The P-Lift Series Is A Standard 120 Volt AC System. The Optional Battery Back Up System is designed to normally run on the 120 Volts AC and when their is a power failure it automatically switches over to run on the 48 Volt DC Output. With four U1 batteries (Not Included) the P-Lift will operate for fifty full cycles meaning it will continue to operate for ten days with the lift used five times a day.

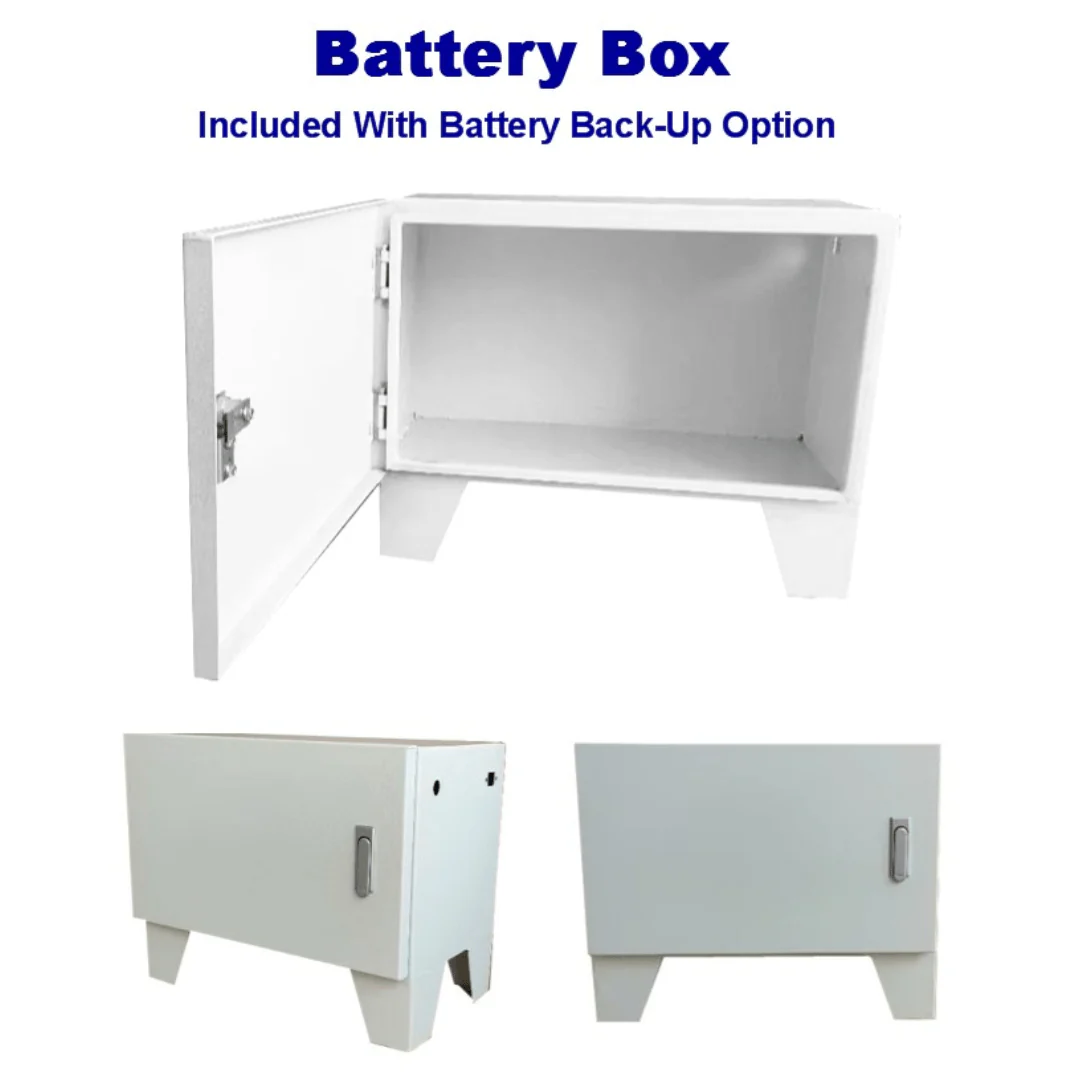

The Battery Backup Option comes with a exterior battery box & a built in inverter that allows the lift to operate when the 120 AC power fails in a addition to everything you need to connect it with the exception of the four 12v U1 batteries.
P-Lift Warranty
All new products are covered by a limited warranty issued by the manufacturer. While warranty claims are processed through the Company for customer convenience, all warranty coverage, terms, and determinations remain the sole responsibility of the manufacturer.
Batteries are covered for six (6) months, and replacement or spare parts are covered for one (1) year, as defined by the manufacturer. This limited warranty does not include labor, installation, or service costs, and does not cover damage caused by misuse, abuse, negligence, improper use, accidents, or failure to follow manufacturer instructions.
The warranty also excludes non-durable items and components subject to normal wear and tear, including but not limited to rubber materials, accessories, wheels, brakes, upholstery, and plastic parts, which may require routine replacement.
All warranty claims require valid proof of purchase and must be submitted through the Company. For products confirmed by the manufacturer to be under warranty, the manufacturer may, at its discretion, authorize the Company to provide a replacement part at no charge. The manufacturer alone determines warranty eligibility, remedies, and fulfillment.
The Company acts solely as a facilitator of warranty claims and assumes no liability for manufacturer defects, warranty decisions, labor, installation, loss of use, or any indirect or consequential damages.
